Pallet Stacker Crane
Pallet Stacker Crane
Picture-02
Picture-03
System Introduction
The Pallet Stacker Crane uses a pallet as the storage/retrieval unit and has incomparable advantages in performance indicators such as storage/retrieval height, weight, and throughput. The shuttle is a type of key equipment for multi-level AS/RSs and is widely used in cold chain, food, pharmaceutical, manufacturing, automobile, and new energy sectors.
Contact Us
Navigation positioning accuracy
± 3 mm
Communication mode
optical communication
/ wireless AP
Max. rated load
8,000 kg
Product Display
Competitive Advantage
Casestudy
Competitive Advantage

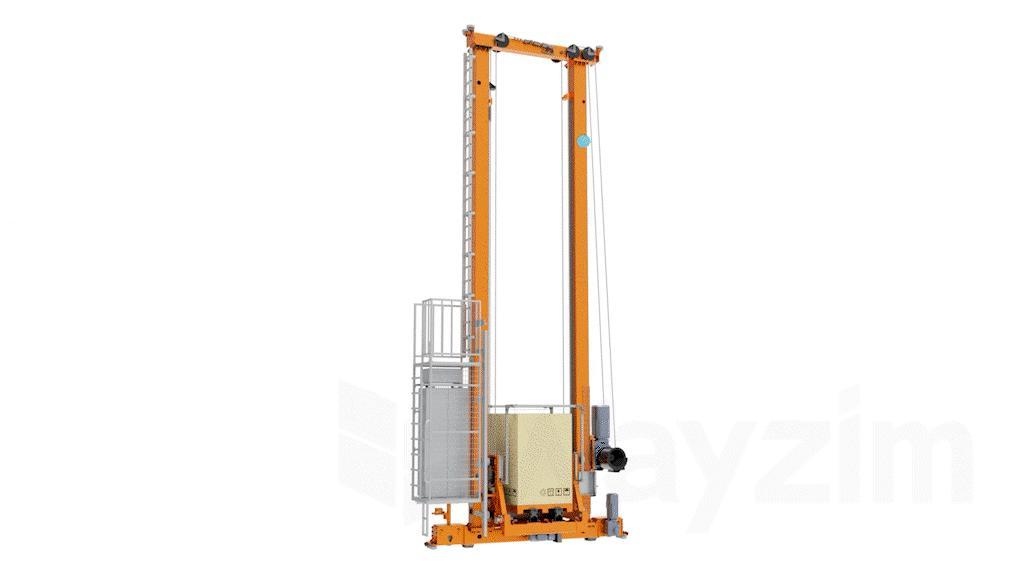

Modular and Lightweight Design
The product structure is optimized based on FEA software, decreasing the dead weight of the entire device by up to 10%. Electrical components are located at a height of less than two meters for easy maintenance and operation.

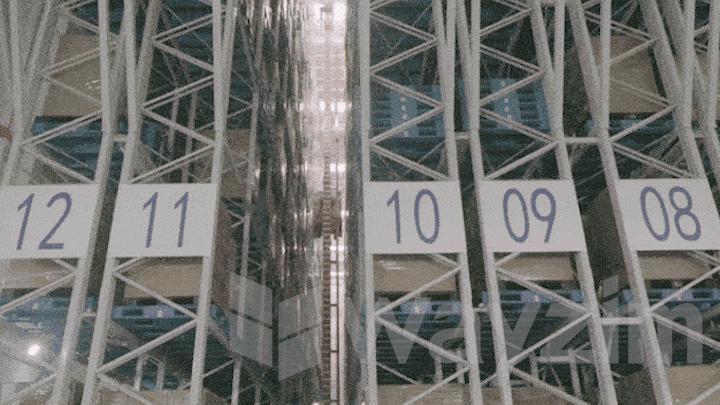

Double Closed-loop PID for Smooth Operation
The double closed-loop PID control and mast anti-sway technologies ensure that the operation of the stacker crane follows the S-shaped speed curve, enabling smooth start/stop under higher speed running conditions.

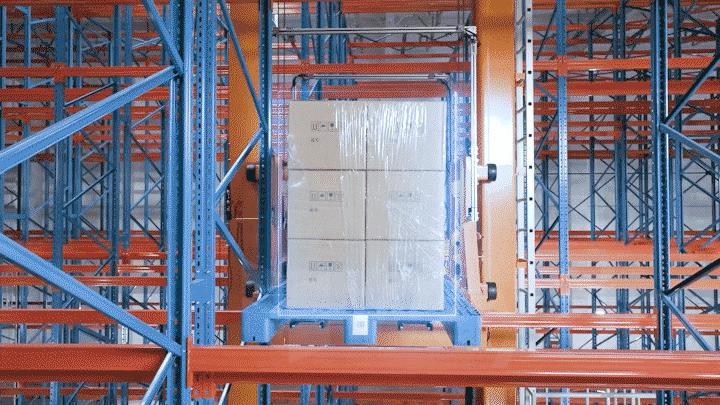

Comprehensive Safety Monitoring and Protection System
A comprehensive protection system is equipped, including level 5 safety protection in the horizontal direction, level 4 safety protection in the lifting direction, wire rope overload looseness detection, contact-type intelligent goods anti-collision protection, and visual monitoring of improper situations.
